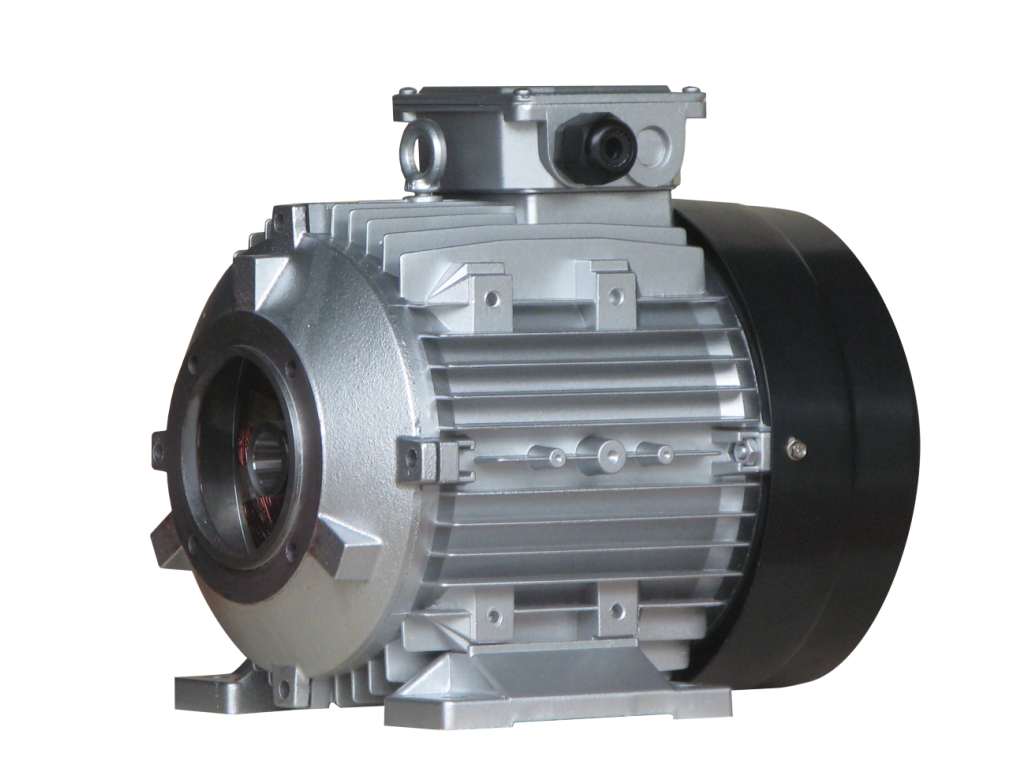

2 pole generator, used for matching of gasoline/diesel generator

Product introduction: The permanent magnet generator has an average life of 7-10 years. It is required to be paired with a reliable internal combustion engine and work at rated speed, and the load power does not exceed the rated power. Permanent magnet generator using rare earth "NdFeB" can work well under rated power for a long time

1. Fully enclosed, protection level performance index reaches the national standard GB/T26680-2011, especially suitable for harsh environments such as humidity, dust, etc. In addition, this product has no electronic components, which eliminates the problems of electric sparks and static interference. The whole machine has strong sealing, so it is very suitable for working in environments with a large degree of explosive danger.

2. Insulation and protection level: H level, IP55 (fully enclosed)

3. Operating environment: temperature -41～55℃, altitude 5000m,

4. Air relative humidity ≤95% (25℃)

5. The structure is simple and the efficiency is high (the magnetic rotor structure eliminates the excitation power required to generate the rotor magnetic field and the mechanical loss of friction between the carbon brush and the slip ring, which greatly improves the efficiency of the permanent magnet generator.

6. Small size and light weight. The rotor is designed with embedded permanent magnets, without slip rings, and electronic components such as AVR greatly reduce the volume and weight of the product.
